Homogeneous fastvelocity layer over homogeneous slowvelocity halfspace
 Tested algorithms:
This benchmark case was applied to the following programs: SOFI2D (transformed), SOFI3D, SPECFEM and Gemini
 Scale:
Ultrasonic data
Benchmark case: Homogeneous fastvelocity layer over homogeneous slowvelocity halfspace
Model description
The benchmark model for this case consists of a homogeneous fastvelocity layer (Pwave velocity 4 km/s, Swave velocity 2.31 km/s and mass density 1.8 g/cm³) over a homogeneous slowvelocity halfspace (Pwave velocity 2 km/s, Swave velocity 1.15 m/s, mass density 1.8 g/cm³). The layer thickness is 10 mm and elastic wave propagation is assumed. A vertical force source is used as source. Download the model description for a detailed description of the benchmark test including the characteristics of the source and the acquisition geometry.
Compared algorithms
In this benchmark test four different forward solvers are compared: SPECFEM3D, Gemini II, SOFI3D and SOFI2D where results of SOFI2D are transformed to equivalent pointsource seismograms. A description of the transformation is provided for download. Please note that proper physical amplitudes of the source are only implemented in SPECFEM3D and SOFI2D.
Time series for download
The calculated time series are provided for download .

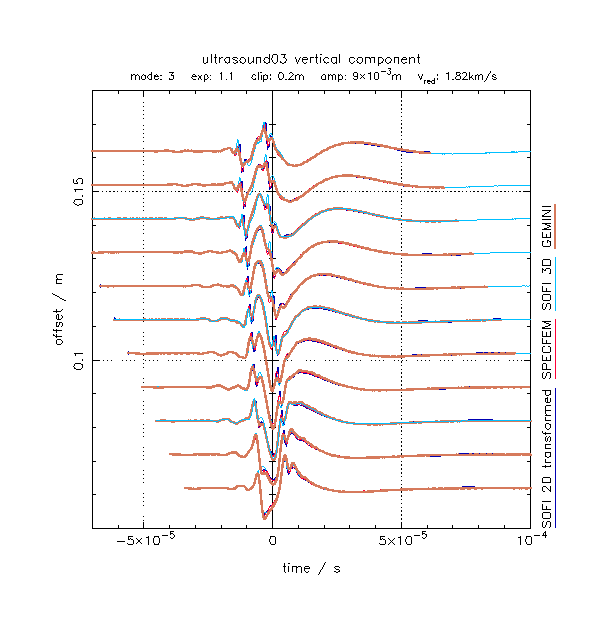

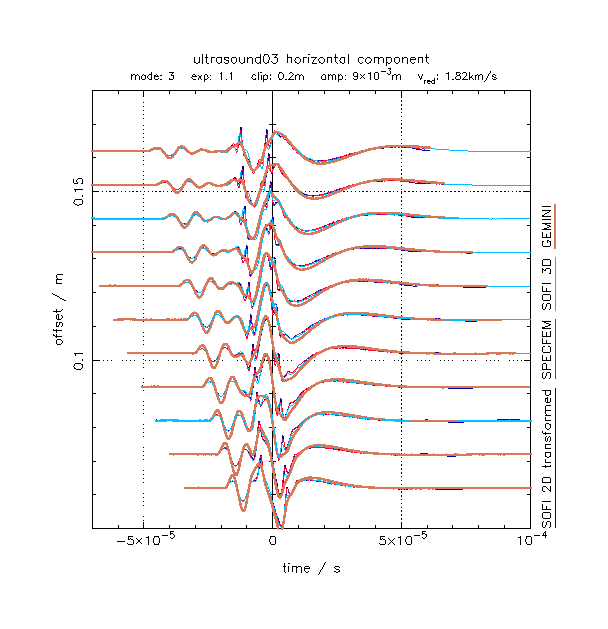

The plots displayed on the left and additional zoomed views are provided for download (PDF file). The seismogram displays are produced with refractx. Plot parameters are given in the subtitle of each plot.
The parameter settings used for the plots are given in the label of each plot.
 mode: scaling mode
 1: scale traces individually
 2: scale all traces to first trace as reference
 3: scale all traces to a common offset trace of each dataset as reference
 exp: traces are scaled by offsetdependent factor of (r/1m)^{exp} where r is the offset
 clip: clipping level
 amp: amplitude level
 v_{red}: timescale is reduced by t_{red}=tr/v_{red}
