FW-NA

FW-NA
Author:

Ilaria Mosca

contact

FW-NA is a package of Fortran programs based on a Monte Carlo approach for solving a waveform inversion and thus defining the 1-D physical properties of small-scale structures.

FW-NA

screenshot

Project Description

FW-NA is a package of Fortran programs based on a Monte Carlo approach for solving a waveform inversion and thus defining the 1-D physical properties (e.g., shear wave-speed, compressional wave-speed, shear dissipation factor) of small-scale (i.e., from millimetres to few meters) structures.

It consists of three main ingredients:

  1. The programs for solving the inverse problem using the Neighbourhood Algorithm (NA), a Monte Carlo technique developed by Sambridge, [2] and [3] (rses.anu.edu.au/~malcolm/NA/).
  2. The programs for solving the forward modelling using the package GEMINI II.
  3. Fortran codes to connect the input/output files of NA and GEMINI with each other.

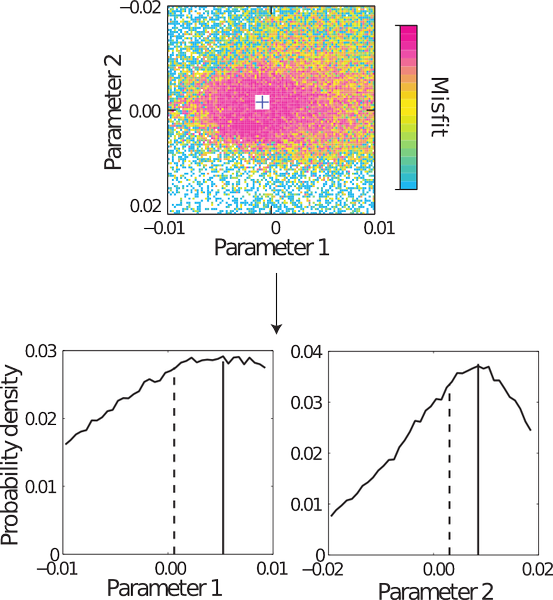

From a theoretical point of view, the NA samples the entire model space and attributes a misfit function to each solution compatible with the data (top panel of Figure). For each sampled model the algorithm solves a forward problem which in the present case is given by the approach of Friederich & Dalkomo [1]. Then, all the models are expressed in terms of (Gaussian or non-Gaussian) probability density functions (pdfs) which represent all the possible information gained from the data (bottom panel of Figure).

References:

[1] W. Friederich & J. Dalkolmo (1995). Complete synthetic seismograms for a spherically earth by a numerical computation of the Green's function in the frequency domain - Geophys. J. Int., 122, 537-550

[2] M. Sambridge (1999a). Geophysical inversion with a neighbourhood algorithms I - Searching a parameter space - Geophys. J. Int., 138, 479-494.

[3] M. Sambridge (1999b). Geophysical inversion with a neighbourhood algorithms II - Appraising the ensemble - Geophys. J. Int., 138, 727-746.
